Vertical Laminar Flow Cleanroom

Overview

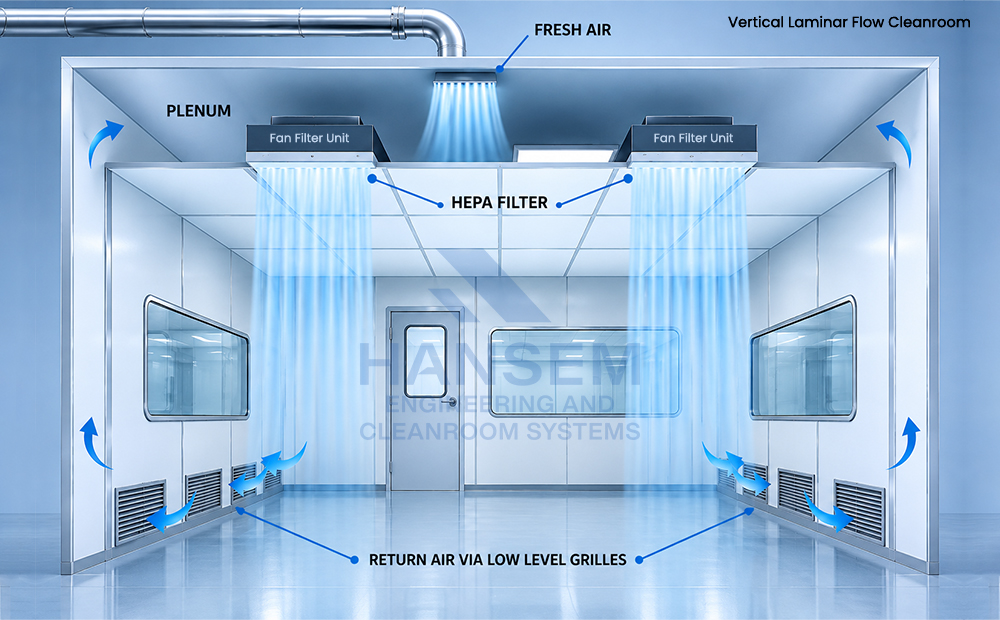

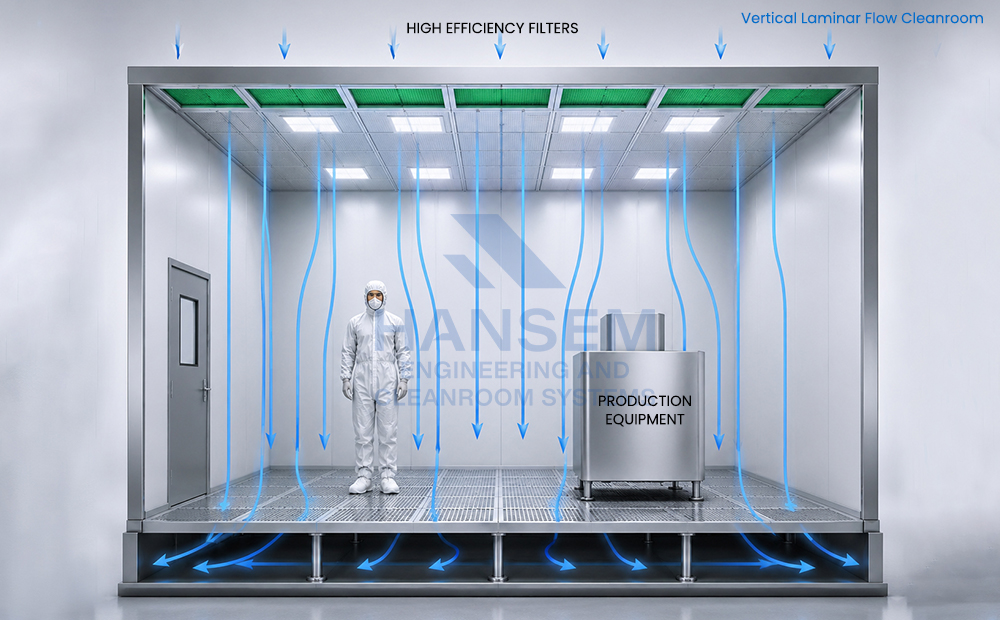

Vertical Laminar Flow Cleanrooms provide unidirectional airflow from ceiling to floor, ensuring contaminants are continuously swept away from critical process areas. Filtered air passes vertically through HEPA or ULPA filters at a uniform velocity before exiting through raised floors or low-level return air systems.

This design provides one of the highest levels of contamination control available.

Key Features

• Ceiling-mounted HEPA/ULPA filter coverage
• Uniform downward airflow
• Raised floor return system
• Uniform airflow velocity
• Continuous particle removal
• Excellent contamination control
• Suitable for automated manufacturing

Typical Air Velocity

• 0.30–0.45 m/s

Typical ISO Classification

• ISO Class 3
• ISO Class 4
• ISO Class 5

Applications

• Semiconductor Manufacturing
• Microelectronics
• Medical Device Production
• Precision Assembly
• Pharmaceutical Filling Lines
• Optical Manufacturing
• Aerospace Components
• Battery Cell Manufacturing

Advantages

• Highest product protection
• Excellent particle removal
• Minimal cross contamination
• Suitable for robotic production
• Superior process consistency
